Classic Mac Pro 5,1 (or simply cMP, also 4,1 upgraded to 5,1) is now considered by Apple as vintage. It’s pretty disappointing considering how capable and upgradable these machines still are. Installing Windows is no longer officially supported, but it’s completely possible though not quite easy.
- When you’re in Windows, use the Boot Camp Control Panel from your Windows tray to select a boot drive: This guide is based on this MacRumors thread. Special thanks to h9826790 for sharing his useful experience. Any comments are welcome.
- After getting my hands on a copy of Windows 8, I ran Boot Camp Assistant on my Macbook Air in Mac OS X, and split my drive to install Windows 8. The installation went without a hitch, but now my trackpad and audio are not working, and I can't run the setup for Boot Camp Control Panel to install.
- Re-run the disk partitioning or Boot Camp My newly installed JetDrive cannot be detected in Mac's Disk Utility. Please try the methods below. Method 1: Select 'Show every partition' from the menu in the upper left corner in Disk Utility. Then restart Disk Utility. Method 2: After JetDrive is formatted, you will see JetDrive in Disk.
- The Boot Camp icon will look like a small gray-black diamond. You should also have an entry in the Control Panel menu. But again, it depends on how you're displaying your Control Panel. Make sure you have it set to display as a 'menu' rather than the default. Boot Camp will not show up in the default Control Panel display.
Also on that boot camp control panel, when i attempt to apply something it says i have no administrative privileges. Aug 1, 2015 7:04 PM.
Another challenge is that macOS Mojave 10.14 now implies using Metal-capable GPU while most of them are not able to display Apple boot menu (which you normally see holding the Option key) required to boot into Windows. Basicaly your screenremains black until macOS is loaded. Well, some EFI bootable cards that support boot menu exist but they are released almost 10 years ago and are really outdated. What is more, none of them supports displaying of boot menu with 4k 60hz monitor connected.
This guide is for those who want macOS Mojave + Windows 10 + modern GPU (in our case Sapphire Radeon Pulse RX 580 8GB).
Updated 28 May 2019
Installing Windows 10 in 5 steps
It’s supposed that you have the latest Boot ROM version 144.0.0.0.0. If not, please update first.
Step 1: Use separate drive for Windows
Boot Camp Assistant no longer supports cMP and doesn’t allow creating a separate partition for Windows.Windows has to be installed on a separate drive, which is good actually to avoid messing with partitions in future.
We recommend using the internal SATA II connector in one of four drive bays or alternatively one of two SATA II connectors in the optical drive area. Using the HP 654540-001 3.5” → 2.5” adapter (7$) to place 2.5” SSD in a drive bay can be quite convenient.
Of cause, SATA II (up to 300MB/s) is a bottleneck for modern 2.5” SSDs (up to 550 MB/s where SATA III is preferable) but real life experience shows that the difference is hardly noticable unless you deal with lots of big files (e.g. >1GB where sequential read/write speeds matter) on your system drive.
We didn’t test using PCIe → SATA III adapter or PCIe → NVMe adapter for Windows partition. Many people reported it was not possible in their case. If you successfully did it please let us know in the comments below or via e-mail.
Step 2: Create a bootable Windows 10 DVD disk
Warning: DO NOT install Windows from a USB flash drive. It has been discovered that Windows when installed in EFI mode is corrupting the Mac Pro’s firmware by signing it with multiple Secure Boot (X.509) certificates. Also, you wouldn’t be able to boot into Windows after selecting its drive as bootable in macOS Preferences → Startup disk. Therefore Windows should only be installed in Legacy BIOS mode from an optical drive.
Make sure that your Windows 10 ISO file fits on the DVD disk, in our case we had to burn Windows 10 1803 ISO (64-bit) to a single-layer DVD+R disc 4.7GB.
Burning a DVD disk under macOS can be done with the following Terminal command:
On Windows we recommend using the free ImgBurn app.
Step 3: Boot from your Windows 10 DVD disk
Boot Camp Control Panel
Turn on your mac while holding the “C” key to boot from the optical disk (if you have PCIe drives installed and can’t boot from the disc, remove those PCIe adapters).Proceed with installation normally until you see the “Where do you want to install Windows” drive selection screen.
Step 4: Format the target drive
Press Shift+F10 to launch command prompt. Type the following commands:
Now make sure to select the correct target drive number N (NOT your macOS disk), after that type:
You should now see your drive as Unallocated space.
Press the “New” button to create necessary partitions. There should be only two partitions (for legacy installation, EFI mode creates four) automatically created:
Select the newly created partition 2 and continue with installation normally. Your mac will be rebooted twice.Every reboot do not forget entering the boot menu (by holding the Option key) and selecting ‘Windows’ boot drive there. When finished, boot into Windows.
Step 5: Install Windows drivers and Boot Camp utility
Windows 10 installs all necessary drivers automatically except Bluetooth and internal speaker. These need to be installed from the original Boot Camp package for MacPro5,1.Download and install 7zip, download Brigadier 0.2.4 app, open Windows command prompt where Brigadier is located and type:
When finished, it will create a folder BootCamp-031-11269, you need to install these for Bluetooth and internal speaker correspondingly, make sure you run the command prompt as administrator:
Now we need newer BootCamp drivers intended for iMacPro1,1:
When finished, it will create a folder BootCamp-041-55643, you need to run this command:
When finished, reboot. We also recommend running Apple Software Update to update Wifi drivers:
You probably don’t want to forget installing our awesome Macs Fan Control app, do you? :)
Switching between macOS Mojave & Windows
When you’re in macOS, use Preferences → Startup disk to select a boot drive:

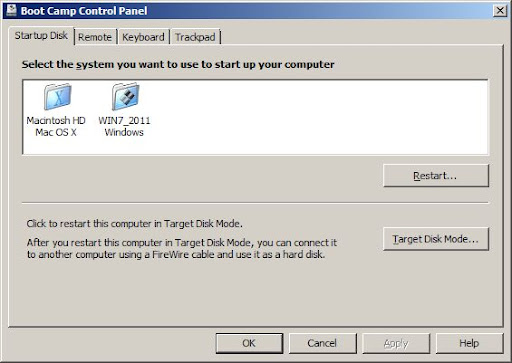

When you’re in Windows, use the Boot Camp Control Panel from your Windows tray to select a boot drive:
This guide is based on this MacRumors thread. Special thanks to h9826790 for sharing his useful experience. Any comments are welcome.
Boot Camp Control Panel User Guide
After you use Boot Camp Assistant to install Windows on your Intel-based Mac, you can use Boot Camp Control Panel in Windows to change Boot Camp options and configure hardware.
Open Boot Camp Control Panel in Windows
In Windows on your Mac, click in the right side of the taskbar.
Click the Boot Camp icon , then choose Boot Camp Control Panel.
If a User Account Control dialog appears, click Yes.
Open the Boot Camp Control Panel User Guide in Windows
Boot Camp Control Panel Dragging
In Windows on your Mac, click in the right side of the taskbar.
Click the Boot Camp icon , then choose Boot Camp Help.
Keep Boot Camp Control Panel in the Windows taskbar
In Windows on your Mac, do one of the following:
Boot Camp Drivers Windows 10 Download
Click in the right side of the taskbar, then drag the Boot Camp icon into the taskbar.
In the search box in the taskbar, type “taskbar settings,” click “Select which icons appear on the taskbar,” then turn on Boot Camp Manager.
In the Start menu, choose Settings, click Personalization, click Taskbar, click “Select which icons appear on the taskbar,” then turn on Boot Camp Manager.
